WALKTHROUGH

Step 1: Get Shipping Methods

Description:

This step will provide the available carrier and delivery speed methods available.

Pre-requisites:

• sessionId – Acquired during the authentication process

Endpoint Details:

• API Endpoint – /customerendpoint/v1
• Call Type – GET
• Path – /getShippingMethods

Considerations:

Response will return a list of current carrier and delivery speed identifiers to be used Step 2

Code Snippet:

Required Parameters

"sessionId": "uywbzibgbfgaienonrgyxahwuwegrtpssvvljdpypfkotqdjqsbydd10906"

Step 2: Order Bulk Inventory

Description:

This step will execute the creation of the bulk inventory for physical cards to be delivered to a specified location.

Pre-requisites:

• sessionId – Acquired during the authentication process
• customerId – provided during client setup. Can be accessed from the /getCustomerList endpointcustProgId – provided during program setup. Can be accessed from the /getCustomerProgramList endpoint

Endpoint Details:

• API Endpoint – /orderendpoint/v1
• Call Type – POST
• Path – /orderCards

Considerations:

Response will return the orderId as the unique identifier for the order for reporting purposes

Code Snippet:

Required Parameters

"sessionId": "uywbzibgbfgaienonrgyxahwuwegrtpssvvljdpypfkotqdjqsbydd10906"
{
"custProgId": "{{cpIdIIC}}",
"customerId": "{{customerId}}",
"qty": 1,
"shippingMethod": "USPS First Class",…

Step 3: Inventory Status & Tracking

Description:

This step will provide a list of orders, status or orders, and tracking information (if applicable) based on defined criteria.

Pre-requisites:

sessionId – Acquired during the authentication process
customerId – Provided during client setup
startDate / endDate – Used to isolate orders for a specific time frame.

Endpoint Details:

API Endpoint – /customerendpoint/v1
Call Type – POST
Path – /getInventoryDetails

Considerations:

Response will return a list of orders based on the criteria provide in the payload
Order status and tracking information can be accessed here to follow inventory delivery

Code Snippet:

Required Parameters

"sessionId": "uywbzibgbfgaienonrgyxahwuwegrtpssvvljdpypfkotqdjqsbydd10906"
{
"customerId": 98709,
"startDate": "2025-01-23",
"endDate": "2025-02-08",
"orderStatus": [Ordered, Shipped, Failed],…

Step 4: Register

Description:

This step will assign a card in the onsite inventory to a specific Employee.

Pre-requisites:

• sessionId – Acquired during the authentication process
• proxyKey – Provided on the physical inventory
• custProgramId – provided during program setup. Can be accessed from the /getCustomerProgramList endpoint
• customerId – provided during program setup

Endpoint Details:

• API Endpoint – /fisendpoint/v1
• Call Type – POST
• Path – /registerCards

Considerations:

• Response will return a list of card elements including the detailOrderId
• The ProxyKey and/or routing/account numbers should be stored at this stage for loading the card based on the specific Employer’s funding flow.

Code Snippet:

Required Parameters

"sessionId": "uywbzibgbfgaienonrgyxahwuwegrtpssvvljdpypfkotqdjqsbydd10906"
{
"custProgId": "{{cpIdIIC}}",
"customerId": "{{customerId}}",
"orderDetails": [
{
"proxyKey": "string",
"email": "[email protected]",
"phone": "string",
"firstName": "string",
"lastName": "string",…

Step 5: Replace

Description:

This step will be used if an Employee already has a registered card that is lost or damaged and will issue them a new physical card from the inventory while keeping all of the underlying account data / balances the same.

Pre-requisites:

• sessionId – Acquired during the authentication process
• proxyKey – Acquired during the original order request
• cpId – provided during program setup. Can be accessed from the /getCustomerProgramList endpoint

Endpoint Details:

• API Endpoint – /fisendpoint/v1
• Call Type – POST
• Path – /replaceCard

Considerations:

• Response will return the same card details for the new card in line with what was returned during the register step.
• The proxy and routing/account number that was stored during the registration of the original card will be maintained for future loads.

Code Snippet:

Required Parameters

"sessionId": "uywbzibgbfgaienonrgyxahwuwegrtpssvvljdpypfkotqdjqsbydd10906",
{
"cpId": "{{cpIdIIC}}",
"proxyKey": "string",
"newProxyKey": "string"
}

Employer Admin Integration

Instant Issue | Personalized

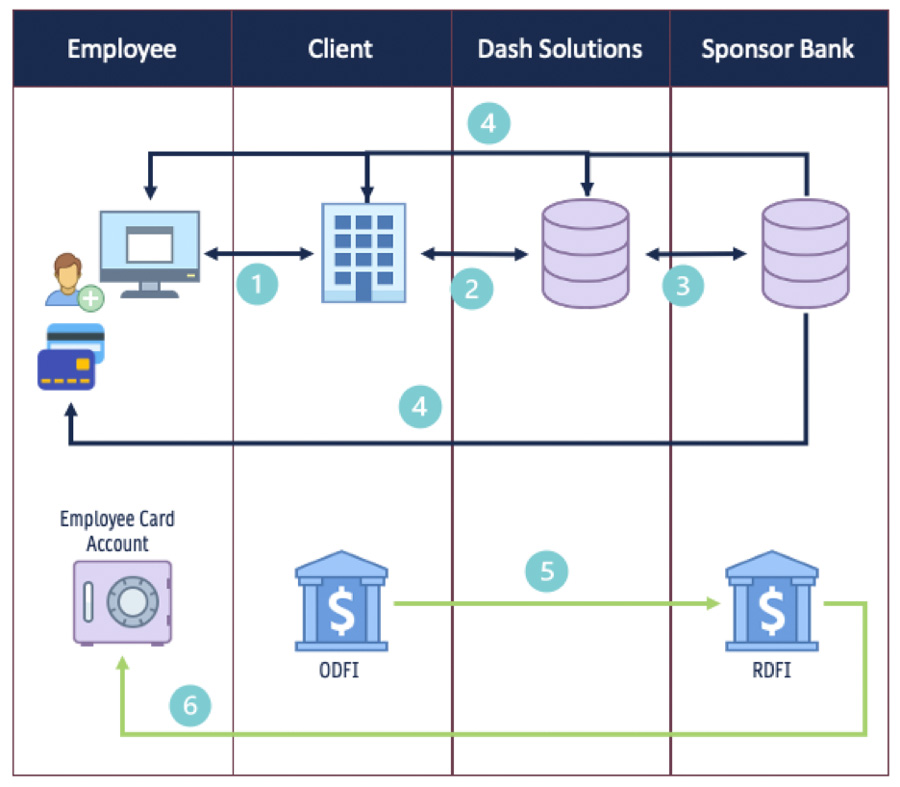

Personalized –Digital First + Physical

• Step 1: Employee is onboarded within the client HRIS / Payroll / PEO System.
• Step 2: Client will provide the required Employee data to Dash to issue a card to the Employee.
• Step 3: Dash will create the card account with the Sponsor Bank/Processor and return the PANProxy & DDA Account details for that Employee.
• Step 4: The Employee will receive an email and/or sms message allowing them to activate their card account for immediate access. A physical card will simultaneously be sent to the Employee.
• Step 5: Client will send due funds to the Employee using either the stored PANProxy or the DDA Account details.
• Step 6: The Employee card account is funded and available for use.

WALKTHROUGH

Step 1: Order / Issue Cards

Description:

This step will execute the creation of the card account and issue the card to the employee

Pre-requisites:

• sessionId – Acquired during the authentication process
• customerId – provided during client setup. Can be accessed from the /getCustomerList endpoint
• custProgId – provided during program setup. Can be accessed from the /getCustomerProgramList endpoint

Endpoint Details:

• API Endpoint – /orderendpoint/v1
• Call Type – POST
• Path – /orderCards

Considerations:

• Card Type designation of physical or digital will be used depending on the client configuration for issuing a physical card alone vs. a digital card with a physical being automatically sent
• Response will return 4 key identifiers that need to be stored by on the client side:
  • orderId – This is a unique identifier for the order that will be used to physical card tracking
  • proxyKey – This is an overall unique account identifier that is used for reference or ancillary API calls. This is also used in loan/unload calls for specific scenarios
  • trn/dda – These two fields are the aba routing and account numbers for the virtual account that are used for loading funds.
  • personId – This is used when updating employee profile data

Code Snippet:

Required Parameters

"sessionId": "uywbzibgbfgaienonrgyxahwuwegrtpssvvljdpypfkotqdjqsbydd10906"
{
"custProgId": 987654,
"customerId": 12345,
"orderProdType": "Personalized Payroll Order",
"cardType": "Digital",
"orderDetails": [
{
"firstName": "string",
"lastName": "string",
"phone": "string",
"email": "string", …

Step 3: Resend Digital Card Account Links

Description:

This step will trigger a resend of the email or sms notification to the Empoyee to activate and/or access the card feature through the digital experience.

Pre-requisites:

• sessionId – Acquired during the authentication process
• proxyKey – Acquired during the original order request
• cpId – provided during program setup. Can be accessed from the /getCustomerProgramList endpoint

Endpoint Details:

• API Endpoint – /orderendpoint/v1
• Call Type – GET
• Path – /sendDigitalCardAlert

Considerations:

• Response will return a success or failure
• Separate calls are needed between email or sms notification triggers

Code Snippet:

Required Parameters

"sessionId": "uywbzibgbfgaienonrgyxahwuwegrtpssvvljdpypfkotqdjqsbydd10906"
{
"cpId": 987654,
"proxyKey": 9376873800385,
"resendMethod": "[email] or [sms]",
"alertType": "Initial"
}…

Step 3: Order Details

Description:

This step will recall the complete order information

Pre-requisites:

• sessionId – Acquired during the authentication process
• orderId – Acquired during the order step

Endpoint Details:

• API Endpoint – /orderendpoint/v1
• Call Type – GET
• Path – /getOrderDetailsByOrderId

Code Snippet:

Required Parameters

"sessionId": "uywbzibgbfgaienonrgyxahwuwegrtpssvvljdpypfkotqdjqsbydd10906",
"proxyKey": "1234567890123",
"customerProgramId": ”987654"

Step 4: Shipping Details [OPTIONAL]

Description:

This step will recall the shipping information for the physical card delivery and provide tracking if available

Pre-requisites:

• sessionId – Acquired during the authentication process
• proxyKey – Acquired during the original order request
• custProgramId – provided during program setup. Can be accessed from the /getCustomerProgramList endpoint

Endpoint Details:

• API Endpoint – /orderendpoint/v1
• Call Type – GET
• Path – /getShippingInformation

Considerations:

For bulk or batch order, the /getOrderTrackingInfo endpoint should be used.
Shipping webhooks are available for pushing updates to client systems to reduce the resources required for pulling tracking on set schedules.

Code Snippet:

Required Parameters

"sessionId": "uywbzibgbfgaienonrgyxahwuwegrtpssvvljdpypfkotqdjqsbydd10906",
"proxyKey": "1234567890123",
"customerProgramId": ”987654"

Instant Issue | Personalized

Employer Admin Integration

Step 1: Get Unregistered Inventory Proxies

Description:

This step will pull a list of current unregistered proxies for a given customer for orders during a set period

Pre-requisites:

• sessionId – Acquired during the authentication process
• cpId – Provided during client setup
• customerId – Provided during the client setup
• startDate / endDate – Used to isolate orders for a specific time frame.

Endpoint Details:

• API Endpoint – /customerendpoint/v1
• Call Type – POST
• Path – /getUnregisteredInventoryProxies

Considerations:

Checking the cardholder details after the update could be done for confirmation

Code Snippet:

Required Parameters

"sessionId": "uywbzibgbfgaienonrgyxahwuwegrtpssvvljdpypfkotqdjqsbydd10906"
{
"customerId": {{customerId}},
"cpId": {{cpIdIIC}},
"startCreationDate": null,
"endCreationDate": null,…

Instant Issue | Personalized

Employee Cardholder Integration

Instant Issue | Personalized

Personalized –Digital First + Physical

Step 1: Set Card Status – Activate

Description:

This step will activate the card for the Employee to be available for use.

Pre-requisites:

• sessionId – Acquired during the authentication process
• cpId – Provided during client setup
• proxyKey – Acquired during the orderCards step.

Endpoint Details:

• API Endpoint – /fisendpoint/v1
• Call Type – POST
• Path – /changeCardStatus

Considerations:

Response will return a list of order details as well as confirming the card status.

Code Snippet:

Required Parameters

"sessionId": "uywbzibgbfgaienonrgyxahwuwegrtpssvvljdpypfkotqdjqsbydd10906"
{
"cpId":"{{cpIdPersonalized}}",
"proxyKey": "9376873800385",
"cardStatus": "ACTIVATE"
}

Step 2: Set Card PIN

Description:

This step will set the 4-digit PIN for card transactions.

Pre-requisites:

• sessionId – Acquired during the authentication process
• cpId – Provided during client setup
• proxyKey – Acquired during the orderCards step.

Endpoint Details:

• API Endpoint – /fisendpoint/v1
• Call Type – POST
• Path – /changePinByProxy

Considerations:

Response will return a list of order and card details
This endpoint can be used for setting the initial Pin for the card or for updating an existing Pin

Code Snippet:

Required Parameters

"sessionId": "uywbzibgbfgaienonrgyxahwuwegrtpssvvljdpypfkotqdjqsbydd10906"
{
"cpId":"{{cpIdPersonalized}}",
"proxyKey": "9376873800385",
"newPin": "2255",
"oldPin": "1234" /* NOT NEEDED*/
}

Step 3: Get Cardholder Info

Description:

This step will pull back the Employee profile details currently registered to the card.

Pre-requisites:

• sessionId – Acquired during the authentication process
• cpId – Provided during client setup
• clientId – Provided during the client setup
• personId – Acquired during the orderCards step

Endpoint Details:

• API Endpoint – /fisendpoint/v1
• Call Type – POST
• Path – /getCardHolderInfo

Considerations:

Response will return the cardholder profile details currently set for the given card account.

Code Snippet:

Required Parameters

"sessionId": "uywbzibgbfgaienonrgyxahwuwegrtpssvvljdpypfkotqdjqsbydd10906"
{
"cpId": "55555",
"clientID": "555555",
"personId": "5555555555"
}

Step 4: Update Cardholder Info

Description:

This step will update the cardholder profile details impacting communications methods and address verification elements.

Pre-requisites:

• sessionId – Acquired during the authentication process
• cpId – Provided during client setup
• personID – Acquired during the orderCards step or in the searchAccount step.

Endpoint Details:

• API Endpoint – /fisendpoint/v1
• Call Type – POST
• Path – /updateCardHolderInfo

Considerations:

Checking the cardholder details after the update could be done for confirmation

Code Snippet:

Required Parameters

"sessionId": "uywbzibgbfgaienonrgyxahwuwegrtpssvvljdpypfkotqdjqsbydd10906"
{
"cpId": {{cpIdPersonalized}},
"personID": "1881009399",
"firstName": "string",
"lastName": "string",…

Step 5: Get Card Balance

Description:

This step will retrieve the card balance confirming available funds for use.

Pre-requisites:

• sessionId – Acquired during the authentication process
• custProgId – Provided during client setup as cpId
• proxyKey – Acquired during the orderCards step.

Endpoint Details:

• API Endpoint – /fisendpoint/v1
• Call Type – GET
• Path – /getCardBalanceByProxy

Considerations:

Pending or on-hold transactions will not show as a part of the available balance.

Code Snippet:

Required Parameters

"sessionId": "uywbzibgbfgaienonrgyxahwuwegrtpssvvljdpypfkotqdjqsbydd10906",
"proxyKey": "1234567890123",
"custProgId": ”987654"

Step 6: Get Card Status

Description:

This step will retrieve the card status confirming access and availability of the card to the cardholder.

Pre-requisites:

• sessionId – Acquired during the authentication process.
• clientId– Provided during client setup.
• proxyKey – Acquired during the orderCards step

Endpoint Details:

• API Endpoint – /fisendpoint/v1
• Call Type – POST
• Path – /getCardInfoStatus

Considerations:

N/A

Code Snippet:

Required Parameters

"sessionId": "uywbzibgbfgaienonrgyxahwuwegrtpssvvljdpypfkotqdjqsbydd10906"
{
"clientId": {{clientId}},
"proxyKey": " 7531459784940"
}
